Rediwall®

PVC permanent formwork for below-ground and selected above ground construction applications

AFS Rediwall is a versatile permanent formwork system made of prefabricated, high-quality panels and interconnecting components that simply snap or slide into place.

AFS Rediwall is a tough, low-maintenace load bearing reinforced concrete solution which can cut your installation times in half (compared to traditional masonry and blockwork methods).

Applications

An innovative walling system for above and below ground applications

Properties

  • Multi-Residential
  • Residential
  • Office
  • Education
  • Healthcare
  • Aged Care
  • Civil
AFS Rediwall Render

Rediwall Benefits

Above and below ground versatility

Ezy-Fit corner panels slide open for access

Speedy-Snap-In panels lock together instantly

Water resistant

Significant Waste Reduction

Speed of Construction

Rediwall Demo

Watch our short 3min video on Rediwall® .

The PVC permanent formwork system for below-ground and some above-ground applications.

Profiles



Wall Type

RW110

RW156

RW200

RW256

RW275

RW300

Wall Thickness

105mm

150mm

194mm

250mm

269mm

294mm

Acoustic Rating (STC)

50

54

58

60

61

61

Filled Wall Mass (kg/m2)

252

360

466

600

646

706

Fire Resistance Level (FRL)

Up to 90/90/90 (Load-bearing)

~120/120 (Non load-bearing)

240/240/240

240/240/240

240/240/240

240/240/240

240/240/240

Panel Type

Speedy Snap-In™ Panels

Speedy Snap-In™ Panels

Speedy Snap-In™ Panels

Slide-In Panels

Slide-In Panels

Slide-In Panels

Rediwall Accessories

01 Curve Panel
Integrating seamlessly into the RW200 interlocking panel system allowing for total wall design flexibility. Easy to install, panels have a minimum curve radius of 0.5-metres, come in a 15-degree segment panels , are available in heights of 3m and 3.6m, and are finished in the standard rediwall® colour.
02 Vertical Bar Locator (VBL)

The afs rediwall® Vertical Bar Locator (VBL) allows for a more streamlined installation process, making the insertion of reinforcement bars quicker, easier and more efficient, with more accurate concrete coverage.

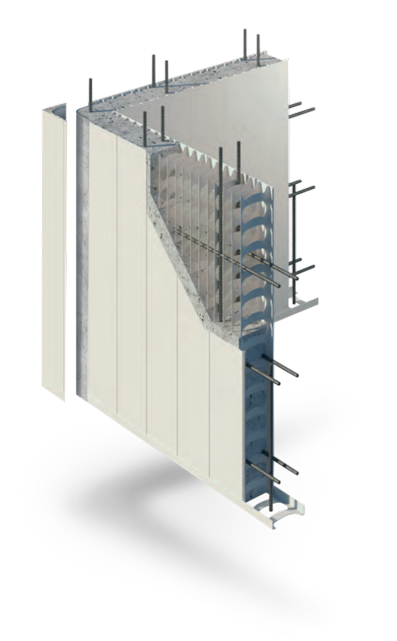

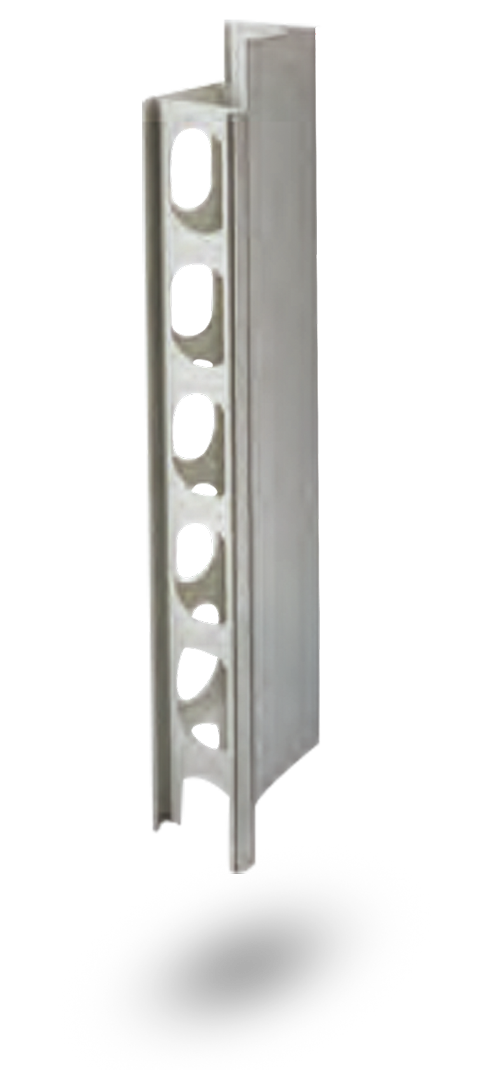

03 Ezy-Fit™ Corners
A three-piece PVC panel that forms a corner between walls meeting at 90 degrees. Designed to allow for removal of the outside 90-degree corner cap for easy placement and inspection of internal reinforcement. Cap is refitted for concrete filling. Adjoining panels are fitted using the male to female clip-in system. *Available for 110mm, 156mm and 200mm.
04 Female/Female Joiners
Female-to-female joiners are used for joining two male ends, particularly useful at a 90-degree corner. It is recommended to use one female/female joiner panel for each 90-degree corner.
05 Female/Female Panel
An extruded PVC panel used to adjust the length of a wall. Adjoining panels are fitted using the male to female clip-in system. Used primarily close to the end of a wall. The female/female panel has two internal webs with kidney shaped holes for single, or double reo bar placement which can be easily changed by inverting the panel. Ideal for blade columns.
06 H-Joiners
H-Joiners are slide together PVC extruded panels primarily used horizontally on external walls. They are laid along the straightened top of panels to act as a bottom track for the next level of panels to be installed. H-Joiners can also be used vertically as a wall make-up piece and can be slid into a gap in the wall of 50mm or less and screw fixed to adjoining panels.
07 J-Track
A slide together PVC extruded panel primarily used horizontally on external walls where an edge-form slab is to be formed. It is laid along the straightened top of the panels to act as a bottom track for the next level of panels and to assist with the edge-form preparation.
08 T-Joiners
A PVC extruded panel that is fixed vertically to the face of a through wall to start a T-Wall, where the T-Wall is close to 90 degrees. T-Joiners have holes in the face to assist alignment when drilling the through wall for reo bar placement. Adjoining panels are fitted using the male to female clip-in system.
09 Floor Track
The PVC floor track and floor angles are used to set the bottom line of the wall. Laid flat, the floor track has large holes to accommodate for starter bars. The sides are used for both locating and screw fixing to the bottom of panels.
10 End Caps
PVC end caps or fibre cement strips are used for capping off wall ends and openings. A PVC slide on connection with a 30mm side for fixing with screws or glue is able to be installed before or after the wall is filled, they must be propped when filling, if a flat end is required.
