Designing with AFS Logicwall
Complete Design Handbook
The Design Toolbox is a comprehensive kit of design and specific resources and construction guides to enhance and advance designing, specifying and building with logicwall®.
The Design Toolbox includes:
- AFS Designer
- Standard Details (PDF and DWG)
With chapters covering:
- applications
- properties
- structural design
- internal/external design considerations
- performance
- environment
- trade coordination
- installation
- certification and architectural detailing
Standard Details
Revit Files

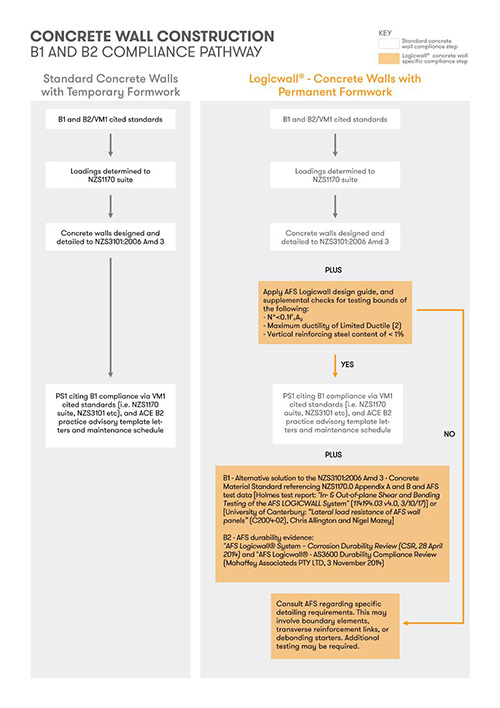

Design Flow Chart
AFS Logicwall BPIR
AFS has provided the Building Product Information Regulations for all products so you can find the relevant information relating to the performance and product details.
AFS Logicwall Compliance & Certifications
Permanent formwork must perform a lifelong role in a building’s structure, so AFS manufactures logicwall® to ensure it passes the most rigorous industry tests. Logicwall® is fully compliant and has achieved certification in relation to its acoustic performance.
Acoustics
Fire
Structure
AFS Logicwall BPIR
AFS has provided the Building Product Information Regulations for all products so you can find the relevant information relating to the performance and product details.
AFS Logicwall
Compliance & Certifications
Permanent formwork must perform a lifelong role in a building’s structure, so AFS manufactures logicwall® to ensure it passes the most rigorous industry tests. Logicwall® is fully compliant and has achieved certification in relation to its acoustic performance.
Acoustics
Fire
Structure
Holmes Worked Example
This document provides an example shear wall design using AFS Logicwall permanent formwork system. The design is for a 5-storey apartment building in a New Zealand region with moderate seismicity on non-liquefiable soils.
The design is for the shear wall only. It assumes the wall has a low axial load (N*<0.10Ag.fc’). The wall is designed to be limited ductile (µ = 2).
AFS prefabricated wall solutions videos
See just how easy afs logicwall® and afs rediwall® are to use. Our videos will take you through the whole process – from delivery, installation, core filling and in the case of logicwall® internal and external finishing. Additionally you’ll also hear what some of our customers had to say about their overall experience with utilising AFS on their projects.
Testimonials
AFS helps you in all the stages of the process through consent and installation. See what our customers have to say.
Engineer testimonial
Builder testimonial
Developer testimonial
Builder testimonial
What is AFS Logicwall?
AFS Logicwall® is a permanent formwork system for concrete walling applicable for external and internal applications. It consists of lightweight sandwich panels created by bonding hard-wearing fibre cement sheets to galvanised steel stud frames.
What are the main applications for the AFS Logicwall® system?
- Intertenancy walls
- Corridor walls
- Lift and stair walls
- Façade walls
- Blade walls
- Party walls
- Boundary walls
- Balustrades
What are the main benefits associated with the AFS Logicwall® system?
- Speed of construction
- Materials handling and resulting cost efficiencies
- Panels are custom made for each project reducing on-site waste
- System is load bearing
- Offers a consistent high quality finish
- Offers ease of design and specification
How are AFS Logicwall® internal walls finished?
For internal wall finishing, afs logicwall® can be:
- Joint set only
- Joint set and skim coated
- Lined with plasterboard.
However, such is the quality of finish of afs logicwall® we recommend that it is simply joint set and skim coated. Walls are then ready for applied finishes.
How are AFS Logicwall® external walls finished?
AFS strongly recommend the application of an acrylic render system to external walls. This assists the concealment of joints and surface imperfections which may be visible with glancing light conditions.
Does AFS provide technical support?
AFS provides extensive technical support to your team of Engineers, Architects, Quantity Surveyors, Drafts people and Estimators along with the availability of detailed technical manuals and design guides.
How many years warranty are extended under the terms of the afs logicwall® and afs rediwall® product warranties and what does each warranty cover?
Please contact AFS directly for further information on product warranties.
